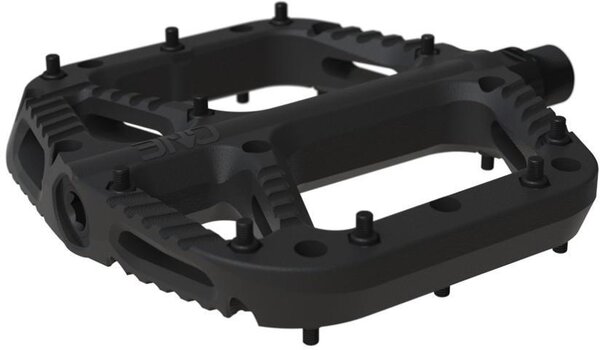

One Up Components One Up Composite Pedals

The OneUp Composite Pedals features a huge (115x105mm) super grippy platform with 10 rear-loading steel pins per side to keep your feet planted on even the roughest of trails. With a weight of only 355g, they won't slow you down on the climbs. Designed from stealth rubber down and shaped with a subtle convex profile to provide you with more grip thanks to the pedals sitting in the natural arch of your foot. The thin leading edge chamfered design gives you maximum clearance to reduce pedal strikes and deflect off trail obstacle.

SPECS
Weight: 355g
Platform Size: 115x105mm
# of Pins: 10 per side
Axle Material: Black chromoly steel
Height: 18.5mm (13.3 at the leading edge)
Pin to Axle distance: 108mm
Color: Stealth Black, Red, Blue, Orange
Body Material: Nylon Composite

INSTRUCTIONS
Install with 6mm Hex or 15mm pedal wrench. Torque to 35Nm (25 ft-lbs) Min
