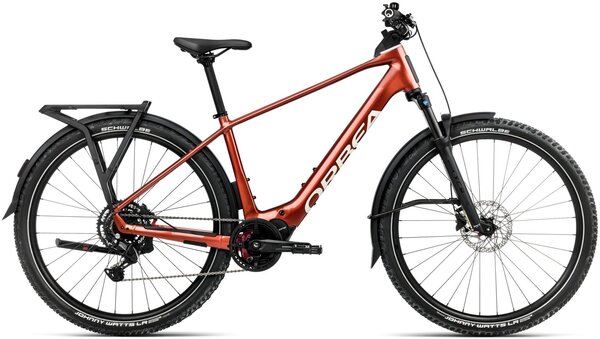

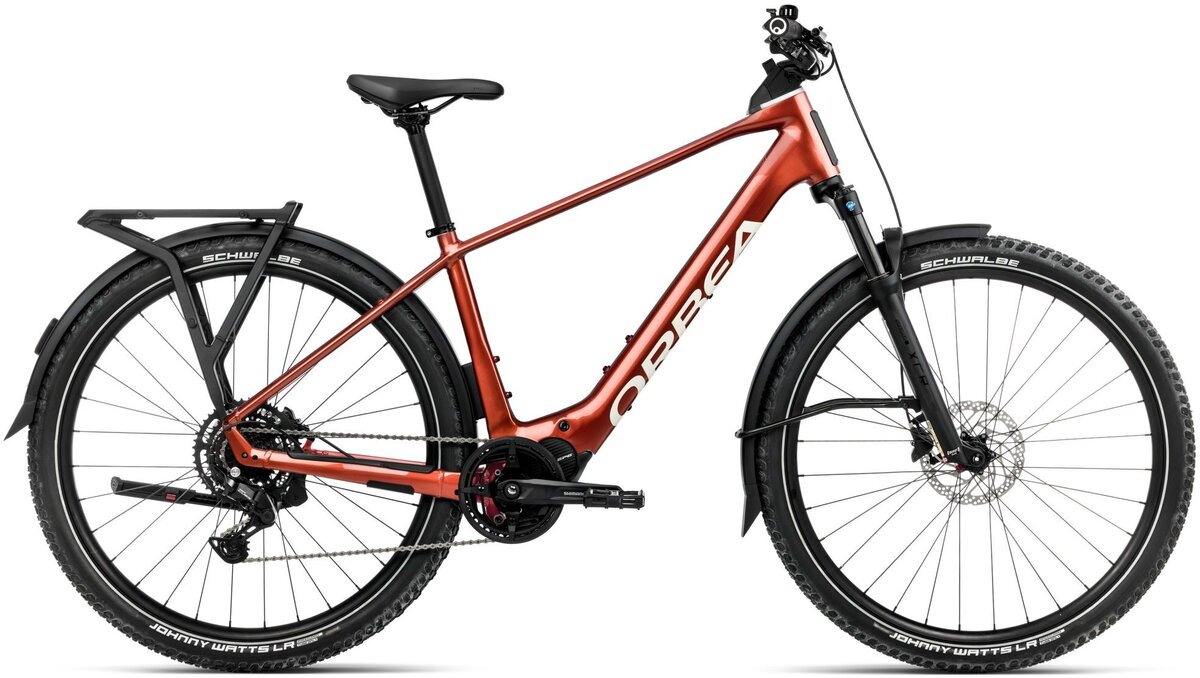

Orbea Kemen ADV 30

Orbea Kemen ADV 30
$4,199.99
$5,199.99
Color: Mars Red - Ivory White (Gloss)
Size: Large
Wheel Size: 29-inch
Please select options Unavailable

Details

Escape the everyday

- 20MPH

Kemen Adv is equally at home cutting through the city or exploring the hills. The powerful Shimano EP motor and 630Wh battery open up a world of possibilities, and our wide range of accessories makes it simple to configure Kemen for whatever your day holds.

Take a deep breath of fresh air. Follow that trail and find out where it leads. Pack a lunch and head out to the beach. Why don’t you take it a little bit too far and escape for a while?

Controlled In Any Situation
- No matter where your adventure leads, Kemen Adv is ready. The frame design and components are carefully considered to give maximum control on rougher trails.

Designed To Handle
- Keeping all the weight low and centered means fast reflexes and inherent stability, essential when the trail gets rough. The riding position is carefully considered to balance the rider between the wheels with a perfect weight distribution, resulting in a feeling of total control.

Off-Road Suspension
- The combination of the suspension fork and wider tyres offers just enough travel for control on rougher trails.

A world of possibilities
- The tools you use every day need to be comfortable and versatile, and Kemen is a bike that offers many possibilities.

By designing smart features and accessories that work specifically with our bikes, we can make sure you aren’t missing anything for your adventure.

Trail Specific Mudguards
- Designed to work with a wider tyre, Kemen ADV´s mudguards are robust and silent. To ensure that dirt doesn’t gather between the mudguard and the tyre, we keep everything totally smooth internally, moving the mounting points and light fittings to the exterior.

30kg Rear Rack
- This is the carrier to use to install a child seat. Enjoy the MIK HD easy attachment system. It is also compatible with conventional saddlebag mounts and with the Ortlieb QL 3.1, MIK, and MIK-SIDE systems.

Power up for the longest adventures
- Kemen´s capacious battery and powerful motor open up a world of possibilities.

Safety built in
- Safety is considered from the start and designed in. That includes intuitive handling and an integrated lighting system that ensures you are always visible.

Intelligent lighting system
- Every Kemen has a built-in, high-tech lighting system that automatically switches on to keep you safe and light the way ahead.

Sizes:
MeasurementSMLXL
Seat Tube (C-T) 428 442.7 457.3 472
Top Tube (EFF) 585.5 613.8 643 671.5
Head Tube 129.5 138.6 150.6 170.2
Chainstay 450 450 450 450
BB Drop 59.8 59.8 59.8 59.8
BB Height 303 303 303 303
Wheelbase 1175 1198 1233 1266
Head Angle 66.5° 66.6° 66.6° 66.6°
Seat Angle 74° 74° 74° 74°
Rake 47.5 47.5 47.5 47.5
Standover - - - -
Reach 409.5 436.5 463 486.5
Stack 639 649.5 660.5 679
Fork Length 523.8 523.8 523.8 523.8
Sizes:
SizeHeight
S 60.2"-67.7"
M 64.6"-72.0"
L 69.3"-76.8"
XL 73.6"-81.1"

Specs

Frame Orbea Kemen Top Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible
Fork SR Suntour XCR34 100mm Coil Q15x110
Wheels Alloy, Tubeless, 29", 29c, 32H
Tires Schwalbe Johnny Watts LR, 60-622, Reflective Tape
Crankset Shimano Steps EM600
Shifters Shimano Cues SL-U4000
Rear Derailleur Shimano Cues U4000 GS Shadow
Cassette/Freewheel Shimano CS-LG300 11-46t 9-Speed
Chain KMC eGlide
Brakes Shimano MT200 Hydraulic Disc
Handlebars Orbea Urban, Integrated Light, Rise 50, Width 760
Headset FSA 1-1/2" Integrated Aluminium Cup
Seatpost Alloy, 31.6mm, Setback 0
Saddle Selle Royal Vivo Ergo
Pedals VP-537 Black
Accessories & Extras Front Light: Supernova Starstream Pro, High Beam, Front Light 2: Orbea integrated, USB-C charging point, Rear Light: Supernova TL3 Z, Quickstand: Massload rear adjustable, Rear Carrier: Orbea RR-02 Alloy, w/MIK HD and MIK Side and Ortlieb QL3.1 system. Max. 30Kg
Motor Shimano EP600
Battery Orbea Internal 540Wh (Optional 252 Wh Range Extender)
Charger Orbea 2.Generation eBike Smart charger 42V/2-4A

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Mars Red - Ivory White (Gloss) / Large / 29-inch 08434446806988 S66107VU KEM38192449S
