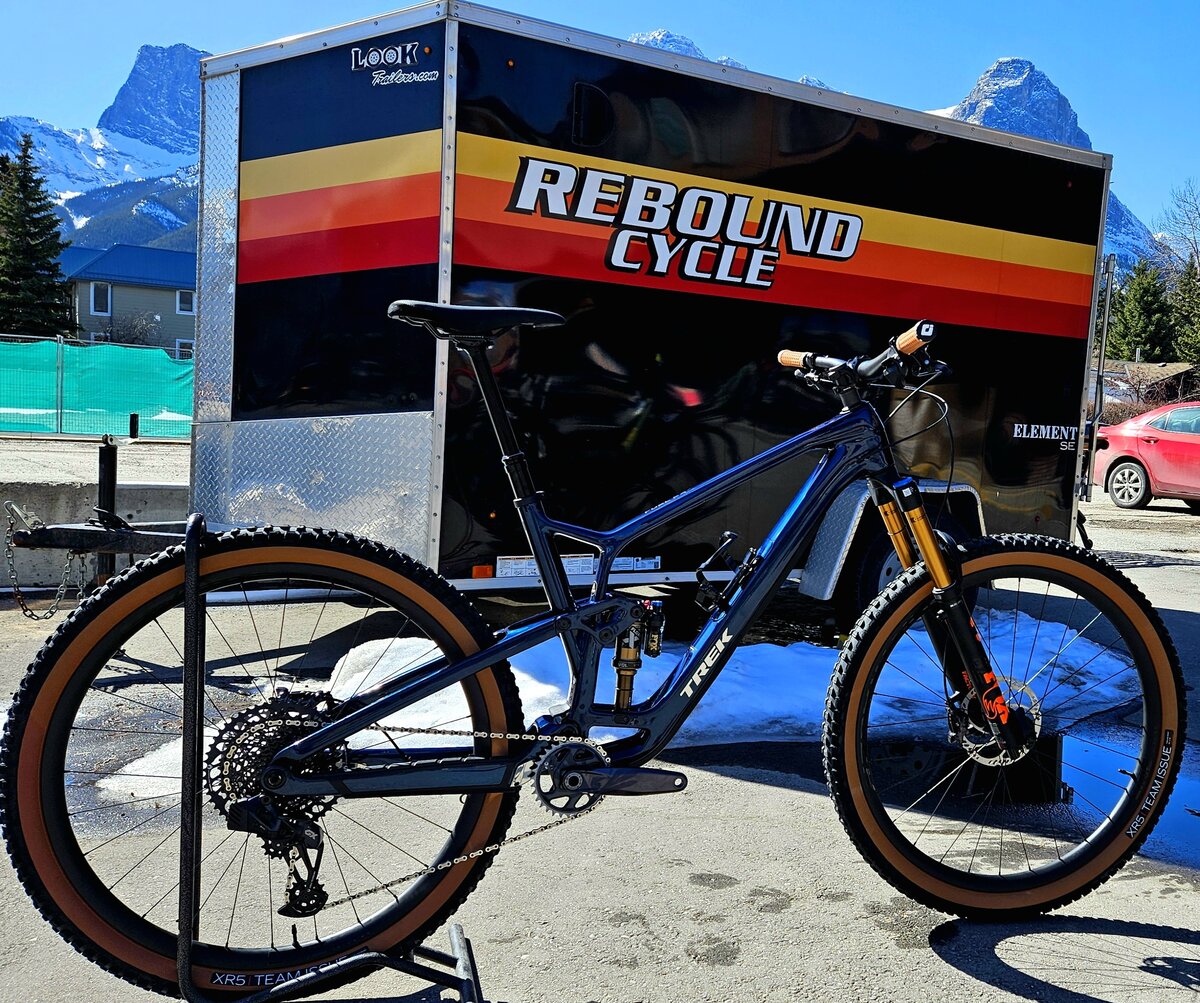

Trek Fuel EX Custom Gen6

Trek Fuel EX Custom Gen6
Please select options Unavailable


Fuel EX is a playful and capable trail bike that blends together cherry-picked components with a light full carbon frame for the best balance of price and performance. Decked out with 150mm of front and 140mm rear FOX Performance suspension package, you'll be ready to float through the chunder, while carbon wheels keep tracking precise through rowdy terrain. A SRAM GX AXS Eagle drivetrain tops things off for precise shifting for power on descents and relief on long climbs.


Frame OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
Fork Fox 36 Factory 150mm Grip2
Rear Shock Fox Factory Float X, 2-position damper, 185mm x 55mm
Rims/Wheels Bontrager Line Elite 30 TLR Boost 29" Wheelset
Hubs Rapid Drive 108, 6-bolt, XD freehub, Boost148, 12mm thru axle, 29''
Tires Bontrager XR5 Team Issue Tan Wall 2.50"
Crankset SRAM GX Eagle
Bottom Bracket SRAM Dub 73mm External Cup
Chain SRAM GX Eagle
Rear Derailleur SRAM GX AXS Eagle
Handlebars RaceFace Next-R Carbon 20mm
Tape/Grips ODI Vans Lock-On Grips 130mm Gum/Checkerboard
Stem RaceFace Turbine-R 40mm
Brake Levers Shimano XT
Brakes Shimano XT

* Subject to change without notice.
